What were the first modern fog catchers like?

The initial forays into technologically capturing water directly from the atmosphere, often termed fog collection, have roots stretching back into antiquity, yet the transition to what we now recognize as the modern fog catcher involved a specific set of scientific curiosity and engineering adaptation in the mid-20th century. While ancient civilizations in dry coastal regions, such as those possibly indicated by artifacts near the Nazca lines in Peru, understood that coastal fog could sustain life, the deliberate, measurable engineering approach is a much more recent development. ^[7] The true beginning of the modern era is intrinsically linked to researchers looking for sustainable water solutions in severely arid zones where conventional water sources simply do not exist. ^[2]

# Pioneering Efforts

The turning point arrived in the 1960s, driven primarily by the work of French scientist Pierre Mouchot. ^[1] Mouchot’s experiments took place in the Atacama Desert of Chile, one of the driest places on Earth, where persistent coastal fog—known locally as camanchaca—offered the only reliable atmospheric moisture. ^[2][4] His objective was not merely to observe the phenomenon but to create a structure that could efficiently intercept these airborne water droplets and channel them into a usable supply. ^[1]

This work moved fog harvesting from a historical observation or an occasional, crude method into the realm of applied environmental engineering. Mouchot’s experiments provided the empirical data necessary to prove that this concept was scalable and predictable, laying the groundwork for every mesh-based collector used today. ^[1]

# First Structures

The very first functional modern fog catchers were remarkably simple in concept, relying on specialized mesh stretched taut across a frame. ^[2] The structure itself was essentially a large screen designed to function as an artificial leaf, mimicking how natural vegetation captures moisture. ^[3] Mouchot’s initial successful prototypes were constructed using a type of plastic netting known as Saran mesh. ^[1]

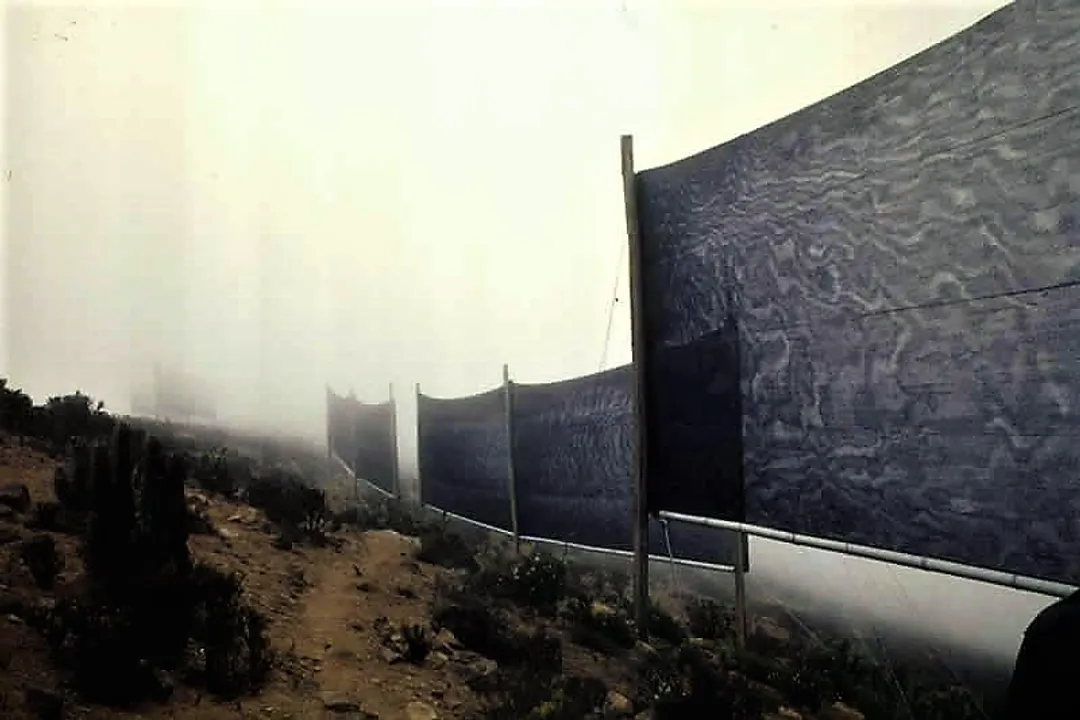

The design prioritized maximizing the collection surface area relative to the ground footprint. Early successful units reportedly had surface areas up to 50 square meters. ^[1] This scale was significant for pilot testing, allowing researchers to measure reliable daily yields and refine the materials used. ^[1][2] The frames were usually made of local, readily available materials, often wood or simple metal tubing, to support the relatively light, but expansive, sheet of mesh. ^[8] The resulting structure looked like a massive, vertical net wall angled to face the prevailing wind direction carrying the fog. ^[4]

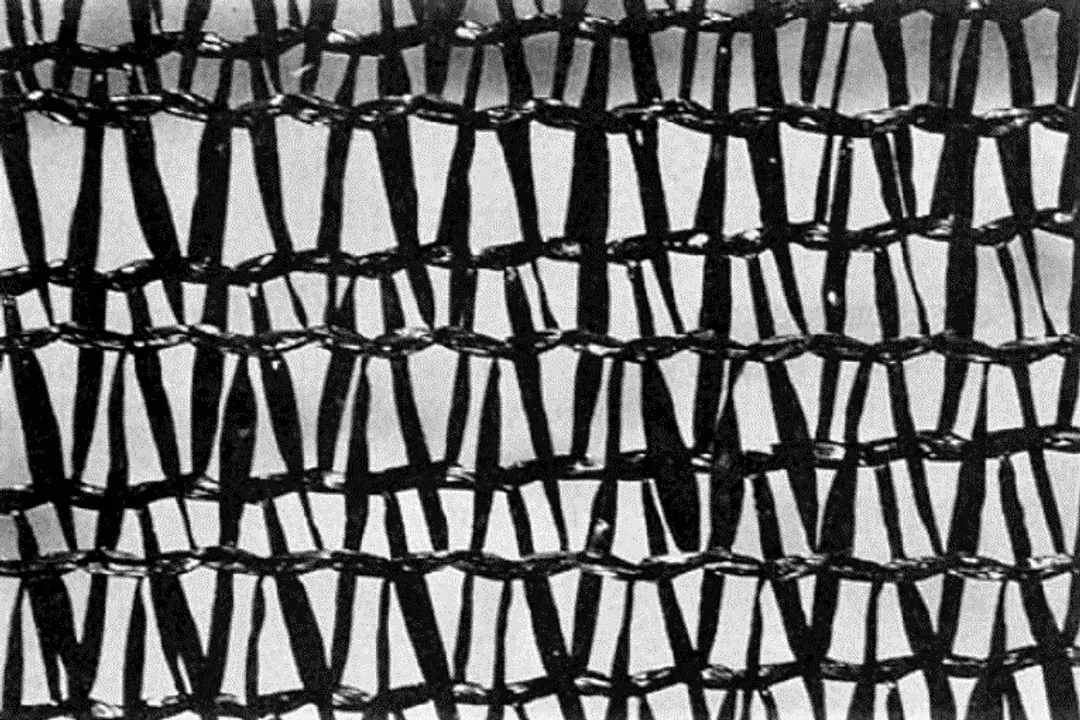

The choice of material was crucial. Early studies, like those conducted by Mouchot, involved testing various mesh sizes. The key insight was that the mesh pore size needed to be comparable to the size of the fog droplets themselves—typically between 10 and 50 micrometers—for the droplets to impact the fibers and coalesce rather than simply blowing through the openings. ^[1][3] If the mesh pores were too large, efficiency dropped significantly; if they were too small, the material would clog too quickly or create too much airflow resistance. ^[3]

What was the first projector called?

# Material Science Applied

The early reliance on Saran mesh, a type of polyethylene, highlights the engineering focus of the "modern" attempt. This material offered good durability, resistance to UV degradation compared to earlier natural fibers, and, critically, the correct fiber diameter for effective droplet capture. ^[1] The initial success wasn't about inventing a new way for water to condense, but rather translating the biological efficiency of natural systems into an engineered barrier. ^[3]

Consider the materials involved:

• Early Frame: Often wood or simple metal piping.
• Screening: Primarily Saran mesh (polypropylene/polyethylene).
• Installation: Angled orientation to maximize exposure to the camanchaca flow. ^[4]

The engineering translation is quite direct: a tree intercepts fog with millions of fine needles or leaves; the fog catcher uses millions of fine plastic fibers across a single plane. ^[3] The real innovation in these first modern devices was quantifying the yield. One report notes that optimized mesh can yield between 3 and 7 liters per square meter per day, depending on fog density. ^[8] For a 50 square meter panel, this meant potentially harvesting over 350 liters on a good day just from a structure that cost relatively little to construct compared to traditional wells or piping infrastructure. ^[1][8] This predictable, small-scale input was revolutionary for remote, arid communities who previously had no reliable source beyond rare rainfall or deep, often contaminated, wells. ^[4]

# Early Deployment Context

The initial deployment of these modern catchers was concentrated in the coastal fog deserts of South America, specifically Peru and Chile, because the atmospheric conditions there were ideal and the need was desperate. ^[2][4] These regions experience high atmospheric humidity in the form of low-lying stratus clouds (fog) for significant parts of the year, but receive negligible measurable rainfall. ^[4]

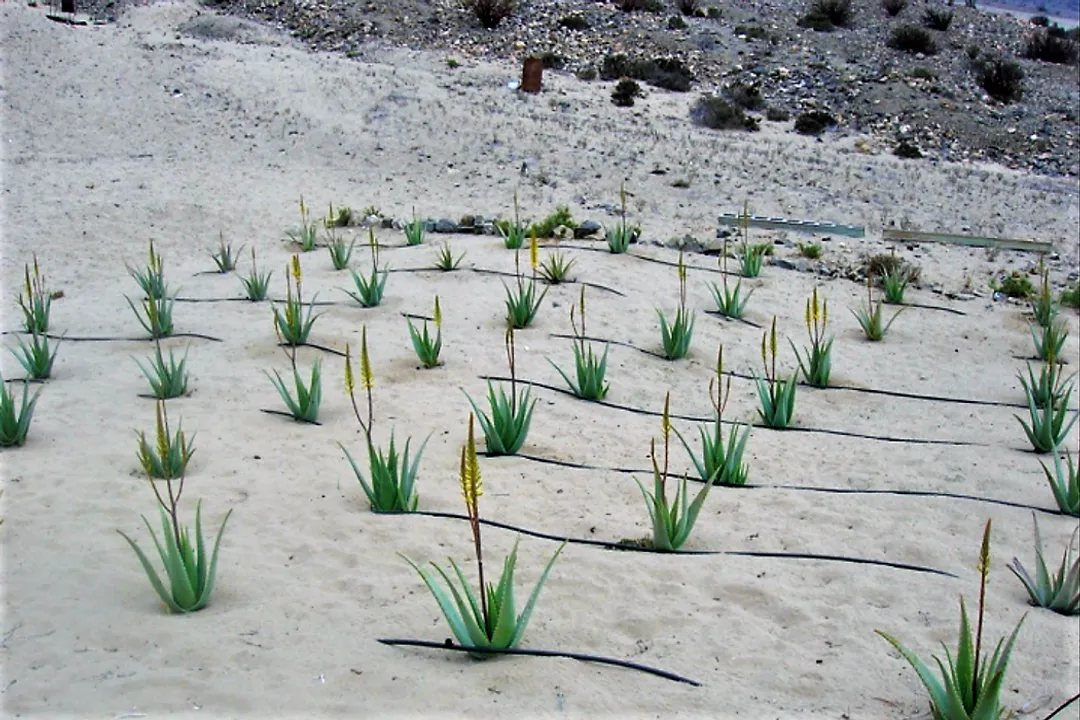

The first modern projects often involved community-scale installations rather than single-family units. The yields, while modest compared to industrial water sources, were enough to support basic needs like drinking and small-scale subsistence gardening, which was a significant improvement over relying on scarce groundwater. ^[2] One interesting observation from early field testing was the variation in efficiency based on factors not immediately obvious—like slight changes in the wind speed or the temperature gradient across the mesh, which affected how long the water droplets remained on the fiber before dripping off. ^[1]

It is fascinating to note that while Mouchot refined the plastic mesh design, other researchers, perhaps working concurrently or subsequently, experimented with different screen materials, including some that mimicked the structure of spider silk or other natural nets, though the durable plastic mesh ultimately dominated the early modern aesthetic. ^[1][8] The successful deployment in places like the Chilean fishing villages demonstrated that the technology was indeed an expert-level adaptation of a natural process, requiring specific knowledge about local meteorology to site the panels correctly. ^[2]

Who made the first plastic soda bottle?

# Refining the Concept

As initial results proved positive, the focus immediately shifted to improving efficiency and durability, which highlights the difference between a prototype and a truly modern solution. The first structures were a success because they were simple enough to build and test quickly, but they were not necessarily the most durable. While Saran mesh was an improvement, exposure to intense UV radiation and constant moisture cycling meant replacement was necessary. ^[1]

This necessity led to the second generation of fog catchers utilizing materials like Ultrafine Polypropylene Mesh. ^[8] Although the core design—a vertically oriented screen perpendicular to the wind—remained, the material evolution was critical for long-term viability in harsh environments. It’s a common trajectory in early engineering: the first version proves the physics; the second version makes it practical for long-term operation. ^[1]

If we consider a typical early setup of a 40 square meter panel operating at a conservative average of 4 liters/m²/day for 150 foggy days a year, the initial output was around 24,000 liters annually. ^[8] For a small village of perhaps 20 people, this provided just over 1.2 cubic meters (1,200 liters) per person per year. While this is far below modern household standards, for a community accustomed to rationing or traveling great distances for water, that captured supply was the difference between subsistence and crisis. ^[4] This calculation underscores that the first modern fog catchers were fundamentally humanitarian and localized solutions, not industrial water projects. ^[2] They were small victories against desertification, captured one droplet at a time on a sheet of specialized plastic.

# Contrast with Predecessors

The defining characteristic that separates the "modern" fog catcher from ancient or indigenous methods lies in standardization and material science. ^[1][7] Ancient methods, such as the use of brushwood or stone arrangements observed in some regions, relied on whatever local vegetation was naturally fibrous enough to snag condensation. ^[7] These methods were site-specific and dependent on natural growth patterns.

The modern approach, pioneered by Mouchot, divorced the technology from the biology. Instead of hoping for the right kind of shrubbery, engineers created the perfect physical barrier—the precisely sized plastic mesh—to replicate the effect. ^[3] This shift allowed for repeatable yields, the ability to transport the technology to different arid locations globally, and the potential for scaling up production, even if the initial units were small pilot projects. ^[1] The introduction of synthetic fibers in the 1960s provided the material stability that natural materials lacked in constant exposure to sunlight and salt spray. ^[8]

The legacy of these first modern catchers is not just the water they produced, but the validation of atmospheric water harvesting as a legitimate, measurable field of engineering, paving the way for larger, more sophisticated installations seen in various regions today. ^[2] They were the simple, functional prototypes that proved the hypothesis: the sky held a harvestable resource, and we could build the tools to collect it. ^[1]
