What are the inventions that improved the textile industry?

The transformation of the textile industry, from a slow-moving cottage trade to the very engine of the Industrial Revolution, was not the result of a single flash of genius but a cascading series of inventions. Each new machine solved an existing constraint only to immediately create a new, even more pressing demand down the line. This dynamic chain reaction, beginning in Great Britain around $1760$, fundamentally changed manufacturing, labor, and the global economy by replacing human effort with mechanical power. ^[2][3][6]

# Weaving Bottleneck

Before the great mechanical acceleration, the process of weaving was often the pace-setter. The first major disruption came in $1733$ when John Kay patented the Flying Shuttle. ^[2][3][6] This device was a simple but powerful improvement to the traditional handloom. It allowed a single weaver to pass the weft thread across a wider warp much faster than before, as the shuttle was propelled across the loom, rather than manually passed back and forth. ^[5] Furthermore, Kay’s son later developed the drop box, enabling easier use of cross-stripes or multiple weft colors. ^[3]

The immediate effect was a massive increase in weaving speed, which created an unprecedented imbalance. Weavers, suddenly capable of working faster, quickly outpaced the spinners who fed them yarn. ^[3][5] Merchants were left with quickly woven cloth but insufficient yarn supply. This supply-demand mismatch proved to be the necessary catalyst for the next wave of innovation, forcing inventors to tackle the ancient art of spinning. ^[2]

# Spinning Velocity

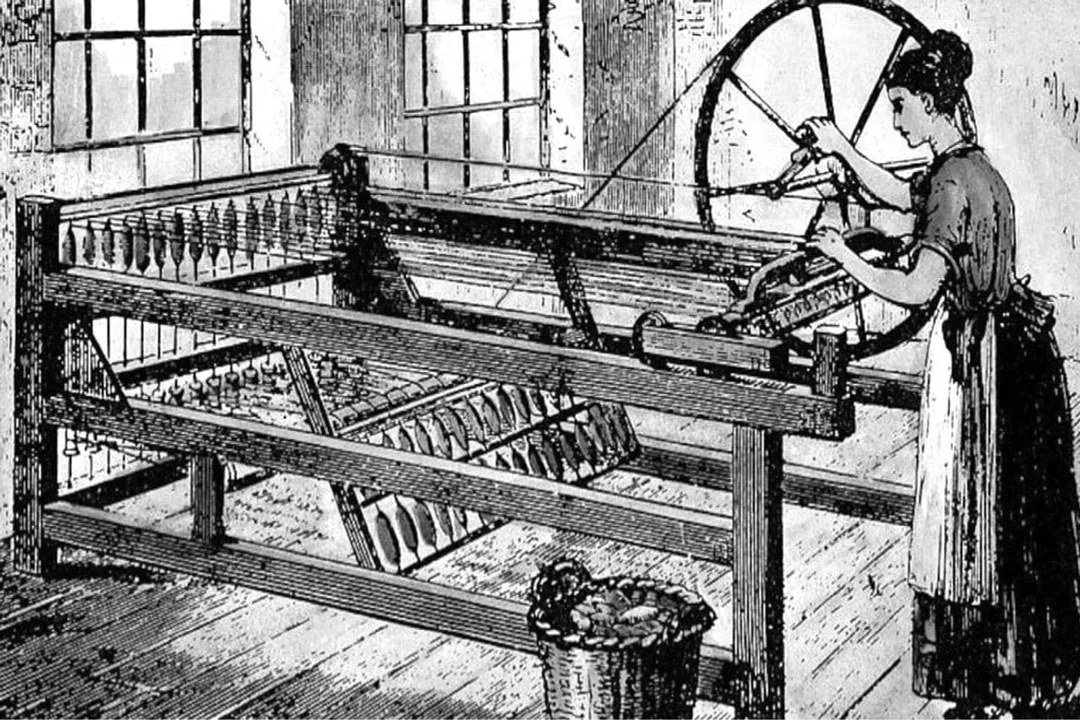

The core challenge was producing yarn faster and, critically, stronger than what a single spinner could achieve by hand. The initial answer came from James Hargreaves around $1764$ with the invention of the Spinning Jenny. ^[2][3] Inspired perhaps by seeing a single spinning wheel knocked over, Hargreaves created a machine that could spin multiple spindles simultaneously—eight at first—using a single wheel to power them all. ^[3] This allowed one worker to produce eight threads in the time it previously took to make one. ^[3] The early Jenny was relatively inexpensive, costing about £6 for a $40$-spindle model by $1792$, and was initially used by home spinners. ^[3] However, the thread it produced was typically weak and only suitable for the weft (the crosswise thread), not the warp (the lengthwise thread). ^[3]

Almost concurrently, Richard Arkwright developed a different answer: the Water Frame, patented in $1769$. ^[2][3] Arkwright’s success hinged on a different principle: rollers operating at successively higher speeds to draw out the fiber, which was then twisted by the spindle. ^[3] Crucially, the Water Frame produced a much harder, medium-count thread suitable for warp. ^[3] Since it required more power than a handwheel could provide, Arkwright naturally turned to water power, establishing the first powered textile machine and, by extension, the first cotton mill powered by water in $1771$. ^[2][3] The development of the factory system, which centralized production, was intrinsically linked to the power source required for this machine. ^[3]

This created a new problem: weavers were still faster than the Water Frame could supply warp, and the Jenny’s weft wasn't strong enough for high-quality, all-cotton fabric. ^[3]

What invention helped the textile industry?

# Synthesis of Yarn

The limitations of the Jenny (weak yarn) and the Water Frame (speed/structure) were resolved by Samuel Crompton with his $1779$ invention, the Spinning Mule. ^[2][3] The mule was a brilliant synthesis, combining the multi-spindle capacity of the Jenny with the superior rolling action of the Water Frame. ^[3] It featured a carriage mechanism that drew out the fibers while the rollers were stationary and then twisted them on the return stroke. ^[3]

The resulting thread was of a fineness and strength previously impossible to achieve mechanically, making it suitable for warp. ^[3] This allowed Britain to finally produce good-quality, all-cotton calico cloth domestically, removing dependency on imports. ^[3] The productivity jump was staggering. A worker using a hand-powered wheel might take over $50,000$ hours to spin $100$ pounds of cotton; by the $1790$s, a mule reduced that to $300$ hours. ^[3] Later, the self-acting mule, patented by Richard Roberts in $1830$, automated the winding stroke, reducing that time to just $135$ hours per worker, showcasing continuous improvement rather than new invention. ^[3]

The collective advancements in spinning were so profound that by $1787$, cotton goods production had already increased tenfold since $1770$. ^[2] The sheer mechanical aptitude required to design and construct these mills and machines was fiercely guarded by the British, yet this expertise was successfully smuggled out to the US by Samuel Slater in $1789$. ^[2][3]

# Mechanizing the Weave

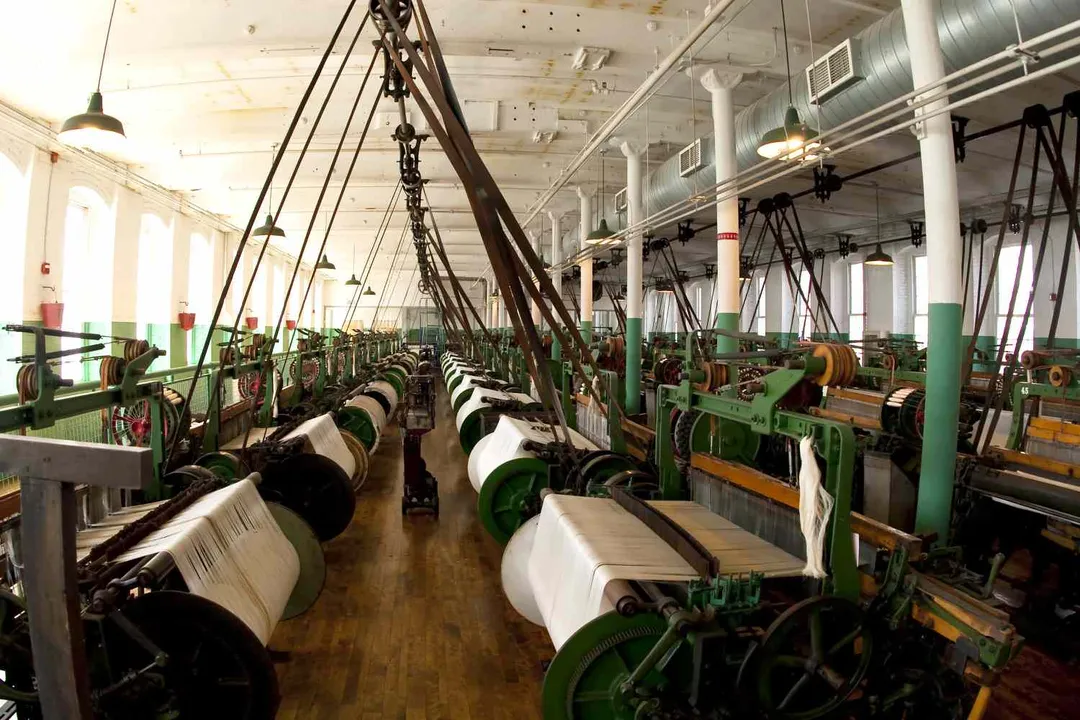

With spinning capacity finally meeting, and then exceeding, the weaving demand, the focus swung back to the loom. Edmund Cartwright patented the first Power Loom in $1785$. ^[2][6] Like the first Jenny, Cartwright's initial design had flaws, notably frequent thread breakage, and he went bankrupt in $1793$. ^[3][6] However, the concept was sound: automating the weaving process using mechanical power, like the steam engine or water wheel. ^[5]

The factory system, solidified by Arkwright's integration of spinning and weaving machinery under one roof, relied on this mechanization. ^[5] Continuous improvements followed Cartwright's patent. Samuel Horrocks introduced a more successful loom in $1813$, which was then improved by Richard Roberts in $1822$, leading to the production of the Roberts Loom, the first one featuring a cast-iron frame. ^[2][3][5] The ultimate automation in this line came later with the Northrop Loom in $1894$, which could automatically replenish its own weft thread, a key difference from earlier semi-automatic models like the Lancashire Loom of $1842$. ^[3][5]

What were the major inventions in the textile industry?

# Power and Raw Material Supply

These intricate machines required immense, reliable power, which was supplied by the parallel revolution in energy and material processing. ^[6] Thomas Newcomen’s early steam engine was significantly improved by James Watt starting in $1765$, creating a separate condenser engine by $1774$ and a rotating engine by $1781$. ^[3] When paired with Cartwright’s loom and Crompton’s mule, the steam engine finalized the transition from water-powered mills to fully mechanized, location-independent factories. ^[3] This industrial power required stronger materials, driving innovations in iron production, such as Abraham Darby’s switch from charcoal to coal smelting. ^[6]

On the raw material side, the sheer volume of needed cotton created a processing bottleneck in the Americas. Eli Whitney’s Cotton Gin, patented in $1793$, automated the separation of cottonseed from short-staple cotton fiber. ^[2] This single invention had an explosive effect: a man using a gin could process in one day what had previously taken a woman two months to do by hand, dramatically increasing the raw material supply feeding the British mills. ^[2]

The development of the power loom and the factory system had a profound, if difficult, societal impact. Skilled weavers who previously worked at home found their craft replaced by machine operation, leading to a massive shift in employment toward factory floor labor. ^[5]

# Modern Shifts in Production

The trajectory of improvement did not end with the self-acting mule or the cast-iron loom. While the Industrial Revolution focused on mechanization and scale, modern technology continues to refine efficiency, quality, and environmental impact. ^[1] Today’s textile technology involves chemistry, physics, and engineering to create fabrics with properties unimaginable in the $19$th century. ^[1]

The focus has shifted toward high-performance fabrics using nanotechnology to create fibers that are stronger, lighter, and more breathable, sometimes reducing the need for extensive water and energy in manufacturing. ^[1] Beyond material science, digitization is transforming design and process management. Digital twin technology, for instance, allows designers to create photorealistic $3$D replicas of fabrics, drastically reducing the need for physical prototyping, thus saving time and cutting down on material waste. ^[1] Automation and robotics are also streamlining production far beyond the capacity of the $19$th-century machinery. ^[1]

It is fascinating to compare the initial drivers of change with today’s imperatives. In the $18$th century, the primary goal was to overcome the physical limitation of human hands in spinning and weaving, leading to inventions that simply scaled up existing mechanical actions—the Jenny spun more threads, the Power Loom moved the shuttle faster. ^[2][3] Today, the challenge, driven by consumer demand for sustainability and performance, is less about sheer speed and more about resource efficiency and material customization. ^[1] For example, where Arkwright and Crompton sought to make thread stronger than was previously possible, modern researchers use nanotechnology to engineer fibers with inherent properties like UV blocking or moisture-wicking capabilities right at the molecular level. ^[1]

Thinking about the historical sequence, an interesting pattern emerges: the speed of spinning inventions ($1764$ to $1779$) was incredibly concentrated, essentially solved within $15$ years, while the weaving automation (Power Loom patented $1785$, successful models later) lagged significantly. ^[2][3] This gap underscores a key theme in industrial history: the initial shock to one part of the chain forces rapid parallel innovation, but the full integration—making the final product consistent and mass-producible—often requires years of iterative engineering refinement after the initial concept is proven. The slow adoption and refinement of Cartwright's loom, needing improvements from Horrocks and Roberts, illustrates that a breakthrough patent is rarely the same as a market-ready solution. ^[3][5] In a modern context, this echoes how today’s advanced concepts, like $3$D knitting or complex sustainable dyeing methods, are often technologically proven in a lab but require years of engineering refinement to become cost-effective and scalable for global manufacturing, much like how William Fairbairn had to replace wooden line-shafting with wrought iron to properly transmit the power of the new steam engines in mills like Quarry Bank. ^[3] The innovation isn't just in the machine itself, but in the entire system that supports it, both past and present. ^[3]

Who invented the textile industry?

# Chronology of Key Mechanical Leaps

The sequence of inventions that shifted textiles from artisanal to industrial production provides a clear picture of escalating mechanical capability. The concentration of these foundational inventions in Britain, driven by the demand for processed cotton, set the standard for industrialization worldwide. ^[2][3]

The success of these machines, particularly the Water Frame and the Power Loom, spurred factory construction. Richard Arkwright is often credited with building the first steam-powered textile factory in $1790$, though steam power was applied to existing machines like the Water Frame earlier. ^[2] This application of external power, whether water or steam, was the essential step that broke the physical limitations of the human worker and cemented the factory as the new center of production. ^[3]

# Spread and Refinement

While Britain guarded its textile secrets, the rapid productivity gains made the technology highly desirable abroad. Samuel Slater, an apprentice to one of Arkwright’s partners, carried the knowledge of machine design to the United States in $1789$, jumpstarting the American textile revolution in New England. ^[2][3] Similarly, the need for better raw materials led to the adaptation of the Cotton Gin in the US, which then fed the increased capacity of the mills globally. ^[2] Even the inventors who created the initial breakthroughs often saw their ideas refined by others; Cartwright went bankrupt, while Crompton’s mule was improved upon by later engineers. ^[3][6] This pattern—initial breakthrough followed by incremental engineering optimization—shows that invention is a process, not a single event, a principle that remains true even as technology evolves toward digital modeling and molecular manipulation today. ^[1]
