Who invented connected ultrasound devices?

The lineage of ultrasound technology is fascinating, tracing back through military applications and physics experiments long before it became a staple in medical imaging rooms worldwide. ^[5] Pinpointing a single inventor for connected ultrasound devices is challenging because connectivity represents the latest evolutionary layer—a complex integration of mature imaging hardware with modern digital networking capabilities—rather than a singular moment of invention like the initial pulse-echo principle. ^[4] To understand who brought connectivity to the screen, we first need to appreciate the foundational pioneers who made the screen possible in the first place.

# Early Echoes

The scientific basis for ultrasound predates its diagnostic application by decades. High-frequency sound waves, those above the range of human hearing, were first explored seriously in the early 20th century. ^[2] A crucial early milestone involved the development of the quartz piezoelectric transducer around 1917 by Paul Langevin. ^[2][5] This device, which could both generate and receive ultrasonic waves, was initially developed for anti-submarine detection, the precursor to modern sonar. ^[2][5] The realization that sound could be used to probe the unseen was established in this military and naval context. ^[5]

# Medical Firsts

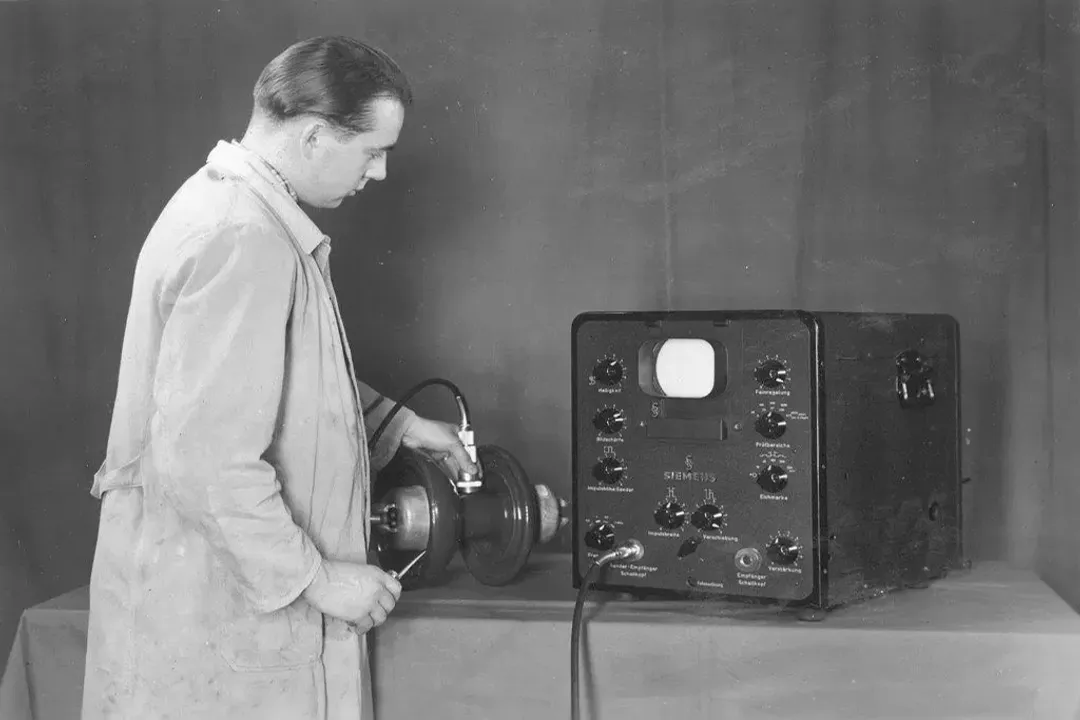

The transition from using high-frequency sound to map the seabed to mapping the human body began shortly after World War II. ^[5] In the 1940s, researchers like Ludwig and Balamuth began experimenting with using ultrasound to detect foreign objects embedded in human tissue. ^[5] However, the true birth of diagnostic medical ultrasound often centers on the work done in Lund, Sweden, in 1953. ^[1][3][5] This breakthrough involved Inge Edler and Carl Hellmuth Hertz, who adapted a modified industrial flaw detector to create the first clinical use of the technology for medical purposes: echocardiography. ^[1][3][4][8] They were observing the motion of the heart valves using what is now known as M-mode (Motion mode) imaging. ^[5] Simultaneously, in the UK, John Wild was developing early units capable of measuring tissue thickness, particularly in the breast, further cementing ultrasound’s diagnostic potential. ^[5]

Who invented remote diagnostics devices?

# Mode Evolution

The early diagnostic devices were limited in the information they could provide. The initial displays, like the one used by Edler and Hertz, were primarily A-mode (Amplitude mode), which displayed signal strength along a single line. ^[5] The next great leap involved translating these echoes into a two-dimensional visual map, a process driven by engineers and physicians throughout the late 1950s and 1960s. ^[5]

This shift introduced B-mode (Brightness mode), which built a composite image by mapping the intensity of the returning echoes onto a screen, creating the cross-sectional views we recognize today. ^[5][9] The development of real-time B-mode scanning—which allowed physicians to see moving structures immediately—marked another significant turning point, moving the technology from static pictures to dynamic observation. ^[4][9] Later innovations included Doppler ultrasound, which permitted the measurement of blood flow, adding a vital physiological dimension to the anatomical imaging. ^[4]

# Digital Shift

The invention of connected ultrasound devices is inseparable from the broader adoption of digital technology in imaging hardware. For decades, ultrasound was an analog process, relying on physical film or paper strip recorders. ^[5] The true path to connectivity—the ability to send, store, and retrieve images across networks—only became practical when the data became digitized. ^[4]

The transition from analog scanning and recording to digital capture was not a single event but a gradual industry-wide migration occurring primarily from the late 1970s onward, accelerated by the falling costs and increasing power of computing. ^[4] Once ultrasound systems began producing digital files (like DICOM images), the infrastructure to share those files—the Picture Archiving and Communication System (PACS) and the wider hospital network—became the enabling technology for connection. The "inventor" of connected ultrasound, therefore, is arguably the collective group of engineers who successfully integrated digital processing units, network interface cards, and standardized communication protocols (like DICOM) into the traditional transducer-and-processor hardware.

Consider the workflow change: before digitization, sharing an ultrasound meant physically transporting a printout or perhaps a recording from an analog video tape. ^[5] With digitization, the image became data, instantly transferable across a local area network (LAN) or even the internet. This foundational reliance on robust digital architecture highlights that the innovation was iterative, building on the pioneering work of Edler, Hertz, and others, but requiring the maturation of computing science to achieve true networked capability. ^[4]

Who invented posture monitoring devices?

# Remote Potential

The ability to connect ultrasound systems—whether to PACS, the Electronic Health Record (EHR), or remote specialists—has dramatically altered clinical practice far beyond just saving physical space on file shelves. While the specific company or engineer that first put an Ethernet port on a commercial ultrasound machine is difficult to isolate in historical texts focused on foundational physics, the impact of this connection is clear. It has enabled the rise of teleradiology and remote expert guidance, bringing high-level diagnostic capabilities to remote or underserved areas. ^[10]

This modern connectivity is also heavily influenced by operational realities. For instance, the adoption rate of cloud-based or networked storage for imaging data hinges not just on bandwidth but on compliance with strict patient privacy regulations, such as HIPAA in the United States. ^[10] A device might technically be able to send data anywhere, but the entire ecosystem—the software integration, the encryption standards, and the secure routing—must be established for it to be clinically viable. This suggests that the invention of the connected device is less about the hardware component and more about the development of secure, standardized, and efficient software and networking protocols designed specifically for medical imaging data. ^[10]

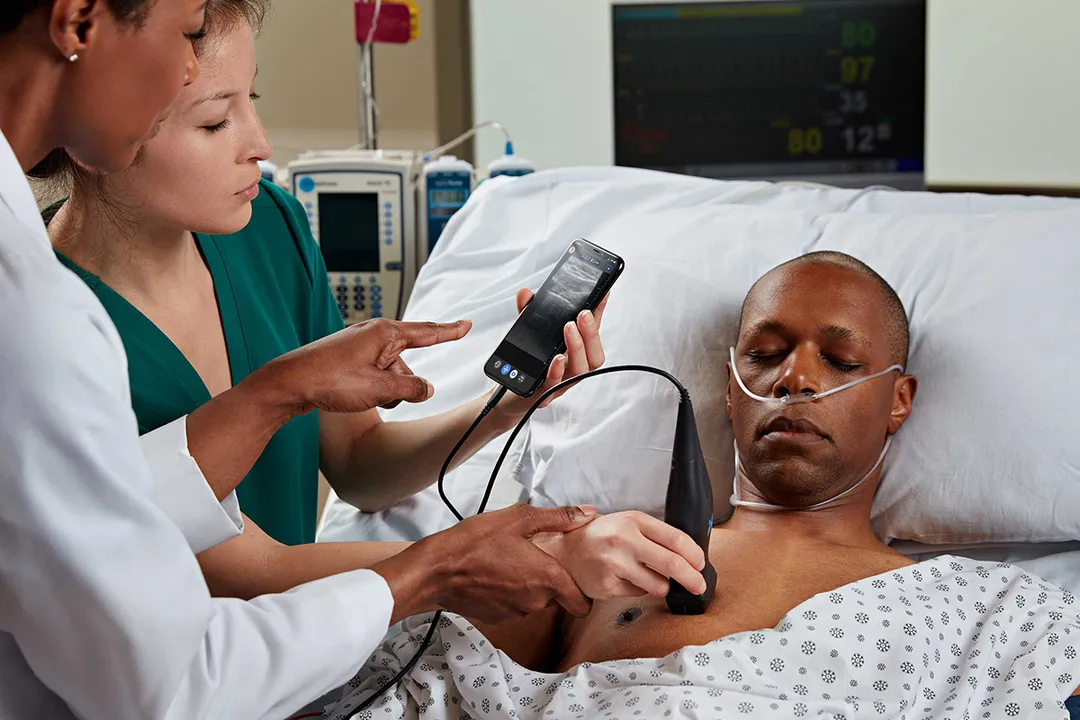

Furthermore, the development of smaller, battery-powered, highly portable ultrasound units in recent years has made connectivity even more essential. ^[10] A physician using a handheld device at a patient’s bedside needs to immediately transfer that study for review by a radiologist miles away. The true value of connectivity becomes apparent when comparing a high-end cart-based system that stays put versus a handheld unit that travels to the point of care; the latter requires connectivity to function as a fully integrated diagnostic tool. ^[10] The evolution from bulky, room-sized equipment to pocket-sized scanners capable of connecting instantly represents the culmination of the entire historical arc, from Langevin's transducer to today's networked diagnostics. ^[10]
